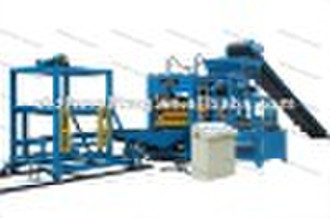

China Shanghai Hollow Block Machine

MainTechnicalParameter of ZS-QT8-15 Block MachineOverallSize(mm) 3250*2690*2720mm MouldingCycle 15-18s Power(KM) 46KW Areaofmolding 900*800mm Heightofmolding 40-230mm Palletsize 1100*680*25mm Hostweight 10T MasterFrequency 4500R/Min Ratedpressure 32Mpa Excitingforce 70-80KN ListofTheoreticalProductionCapacity Proudcts Specifications Pc/Mould Pc/Day Pc/Year StandardBrik 240*115*53mm 40 76,800 23,040,000 HollowBlock 390*190*190mm 8 15,360 4,608,000 Multi-holeBrick 240*115*90mm 20 38,400 11,520,000 PathwayBrick 200*100*60mm 26 34,112 10,233,600 Multi-usage. Can produce concrete masonry blocks, bricks, pavers, slabs stones, curbstones, retaining walls, plant able blocks, interlocking types etc. By just changing the various designs of moulds. Adopt international standard mode, long life, excellent weather endurance, low wastage. Import a great deal of apparatus is another guarantee for our quality. Molding cycle is 10-15 seconds. The average output of one hour is about 74m.Divide the excess oil of pressure into vibration force, reduce energy wastage. The oscillating is drove by hydraulic pressure, controlled by computer, which bring resonance and finally gain the aim of adding material with low frequency and molding with high frequency, causes the concretes full liquefaction, exhaust, achieves the high density and the high strength of the blocks. More safety and long life than vibration by electric motor. Imported PLC control system and hydraulic components make that the control and hydraulic systems achieve the trouble-free operation basically. Actualize the man-machine dialog, easy to use, safe and reliable. The whole machine adopts durable design, applies special jointing to make it become more strong and durable. Storing and dividing material device is computerized material supplying, avoided outside effects to material, ensured material supply with well-proportioned, to cut down the finished products tolerance. Combination type system of second fabric is combined in accordance with production needs. Transmission system is adopted computer control and frequency conversion technology, which is stable, exact, efficient and reliable. Stacking system is adopted simulative computer control, it stacks fast and credibly.Dear customer, if you are interested in our block making machines, please kindly tell me the size of the brick you want to produce, and the production capacity per day/year, then I can recommend a suitable model to you. Welcome your contact!
